Powered by a Cummins X12 Stage 5 / Tier 4 Final diesel engine, the HX480A L complies with the international Stage 5 emissions control standard.  New features like visibility and handle improvement, automatic engine shutdown, auto safety lock, enhanced cabin visibility, and eco gauge lifting mode can help improve productivity on hard to handle jobs.

All Hyundai excavators are known for fast cycle speeds, impressive hydraulic power, and precision control. At Hyundai, reliable productivity is more than just a promise. The robust upper and lower frame structure can endure external shock and heavy workloads for many thousands of hours.

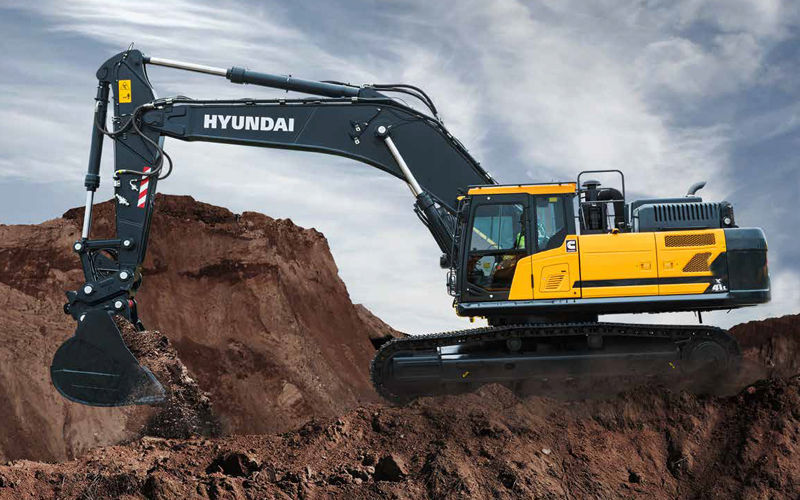

Hyundai HX480A L

  • ENGINE MODEL Cummins X12
    NET POWER 395 HP (295 kW) at 2,100 rpm
    OPERATING WEIGHT 50,690 kg (111,752 lb) - 52,660 kg (116,095 lb)
    BUCKET RANGE 60" | 2.2 m3 (2.88 yd³)
    SWING SPEED 9.0 rpm
    TRAVEL SPEED (MPH) 3.3 km/hr (2.1 mph) / 5.3 km/hr (3.3 mph)
    MAX. DIGGING DEPTH (FT/IN) 7,760 (25' 6")
    MAX. DIGGING REACH 12,040 (39' 6")
    TAIL SWING RADIUS (FT/IN) 3,800 (12' 6")
    BUCKET BREAKOUT FORCE 25,300 [27,600] kgf (55,780 [60,850] lbf)
    ARM CROWD FORCE 20,200 [22,040] kgf 44,530 [48,590] lbf ) ISO
