Operating a 9A series is unique to every operator. Operators can fully customize their work environment and operating preferences to fit their individual needs. 9A series is designed for maximum performance to keep the operator working productively.

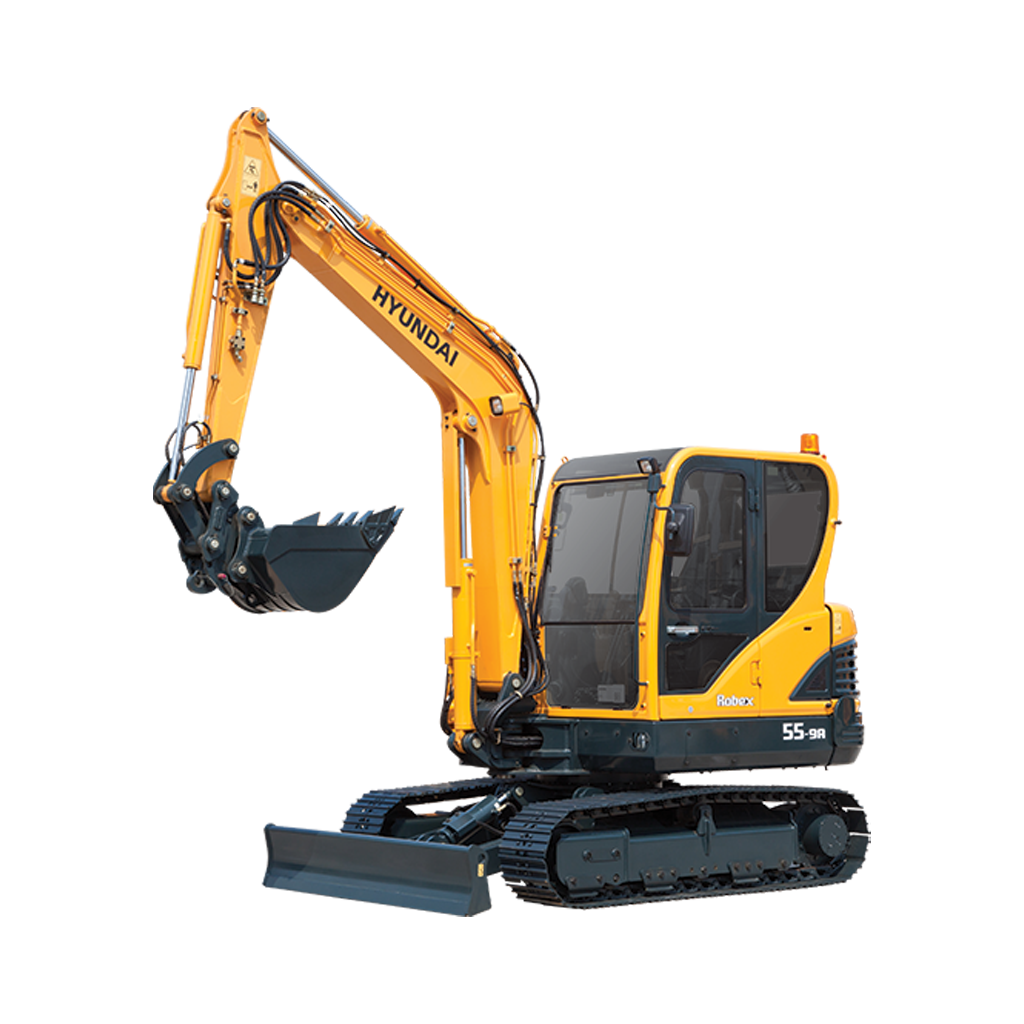

Hyundai R55-9A

    NET POWER 65.1 hp (48.5 kW) at 2,400 rpm
    OPERATING WEIGHT 5,750 kg (12,570 Ibs)
    BUCKET RANGE 0.18 m3 (0.24 yd3)
    SWING SPEED 9.1 rpm
    TRAVEL SPEED (MPH) 4.2 km/hr (2.6 mph)
    MAX. DIGGING DEPTH (FT/IN) 3,820 mm (12 ft 6 in)
    MAX. DIGGING REACH 6,150 mm (20 ft 2 in)
    TAIL SWING RADIUS (FT/IN) 1,650 mm (5 ft 5 in)
    BUCKET BREAKOUT FORCE (SAE) 37.7kN (8,490 lbf)
    ARM CROWD FORCE 2,900 kgf (6,390 lbf)
